This is the second
of my Star Trek scratchbuilds designed by Maseo Okazaki of The Starfleet Museum
website. It is made of RENfoam and took a little over two weeks from start to

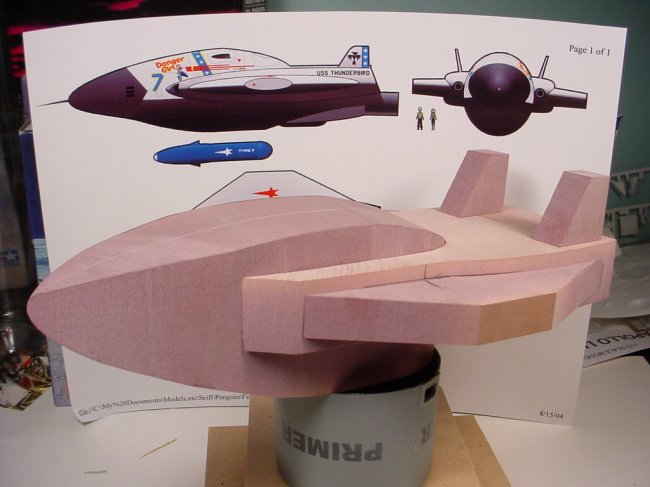

finish. Photo 3 shows the initial foam pieces cut from paper planform and side
templates. The fighter was shaped with a pneumatic sander and hand sanding
with 80, 120 and 220 grit sandpaper.

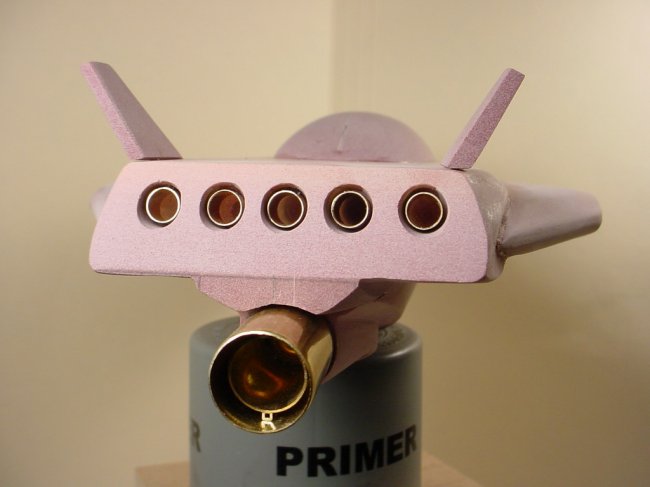

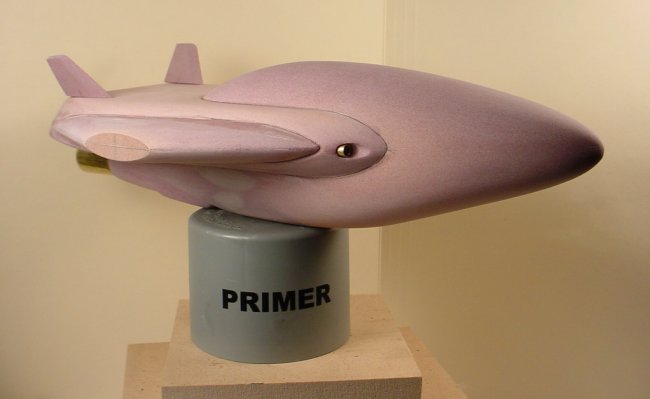

Photos 4 and 5 show it contoured and glued together with CA. Brass tube
was used for the exhaust nozzles and guns. Fins were pinned on the
fuselage.
Click on
images below to see larger images
|
|
|
|
Photo 3 |
Photo 4 |
Photo 5 |

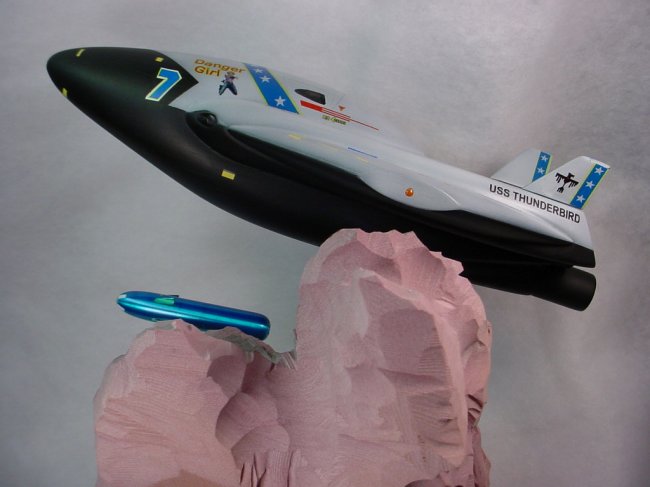

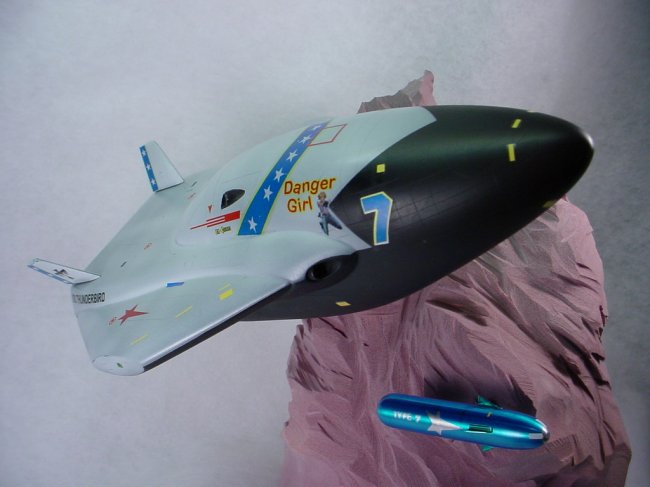

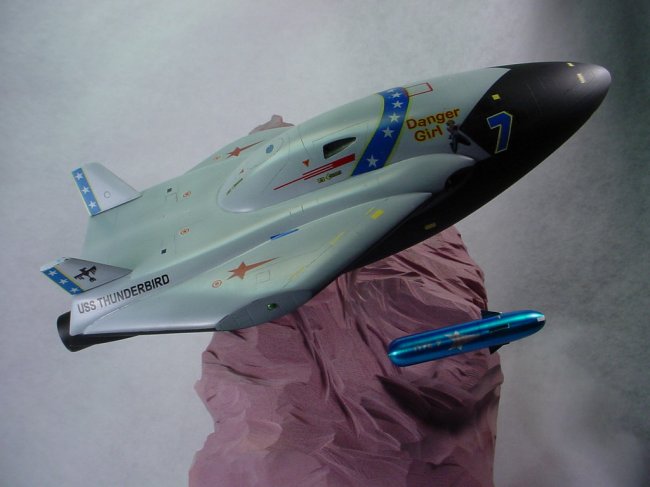

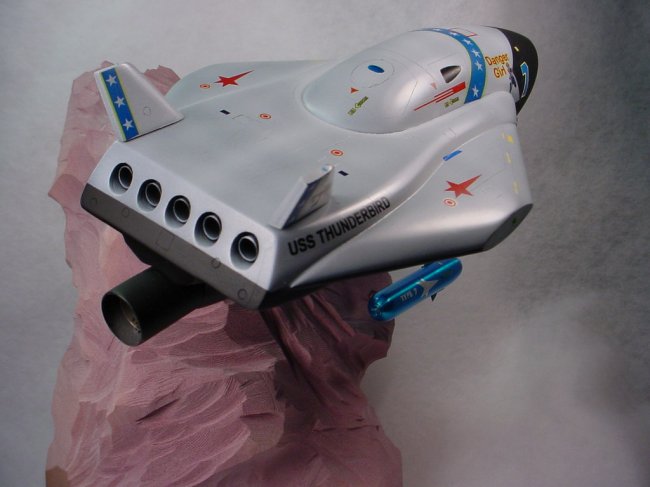

Photos
1, 2, 7 and 8 show the final shots of the finished model. I used Tamiya paints
for the ship and Photon torpedo ( turned aluminum with brass fins ). My good
friend Steve Simmons scanned, altered and laser printed the decals for me, and
did a great job to add the finishing touch to the Penguin.
|
Photo 2 |

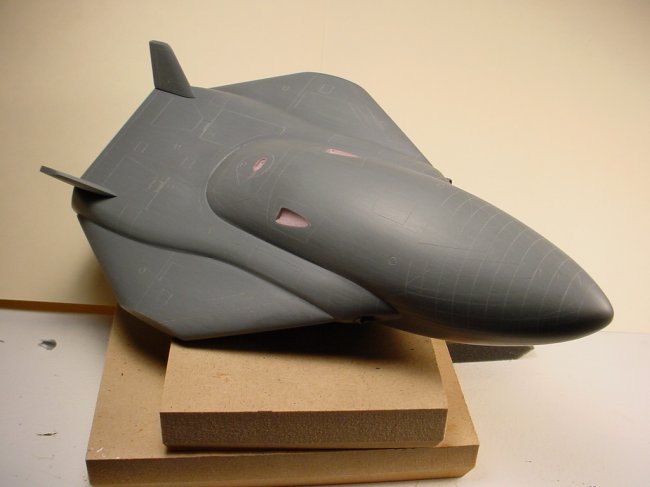

Photo 6 shows the model primed
and panel marked, as well as the cabin windows carved out. I used
laquer primer to seal the foam as well as being a basecoat for the final colors.
The rock cliffs behind the Penguin is a solid chunk of carved Renfoam.
I used 1/8" dia. brass tubes to suspend the ship and torpedo to simulate
flight.
Dan
