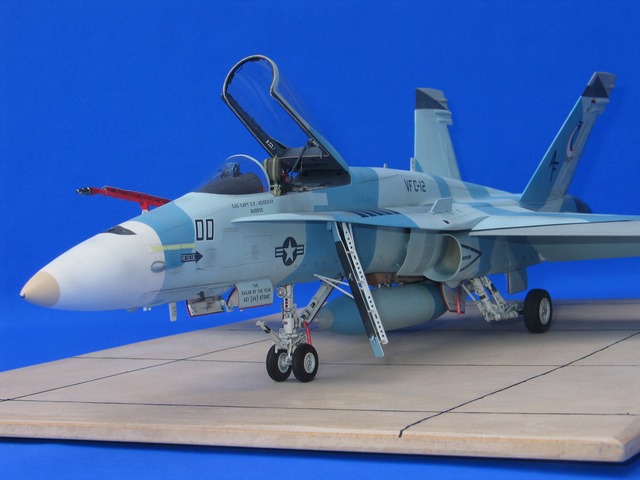

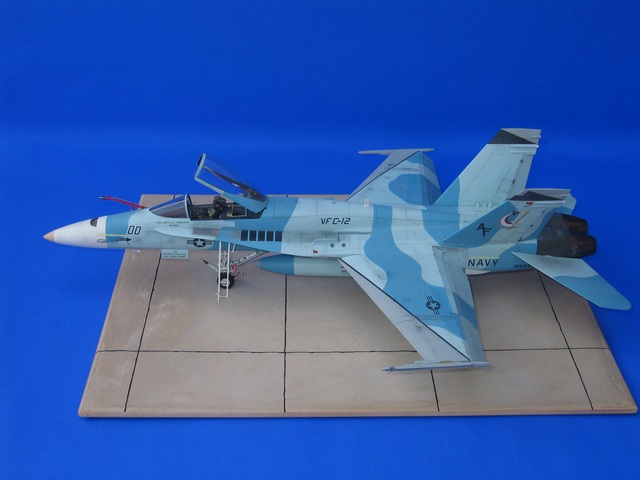

1/32 Academy F/A-18C

built as VFC-12 F/A-18A

by John Wolstenholme

--------------------



This model was built over a 13 month period, detailing using numerous aftermarket and some DIY fixes/compromises.  It is big and expensive, but engineering wise it was a disappointment: (i) shape/size of intakes (ii) gap when LE flaps are dropped (iii) flaps cannot be set fully down at 45 deg, or they ‘hang’ too low (iv) main gear alignment is a problem (v) poor fit of front fuselage to rear (vi) centreline pylon/ tank gap/longitudinal alignment.  Also, I do not know whether it is peculiar to Academy styrene, but I had a lot more problems getting rid of seams on fuel tanks, surface LE’s etc than with any other manufacturer.

 Decals TWB32004 - there are a few things which need correcting; size/thickness of AF tail code, Rescue Arrows too big, numbers in BuNo should not be ‘split’.

Click on images below to see larger images







Aires 2038 Wheel Bays Set - time and patience required, but gives some great detail.

Black Box BBCS32012 Exterior Set – nozzle detail disappointing regarding inner/outer petals at rear; remedied with Eduard exhaust set.  Also, the detailing of their replacement fins (Cockpit set) is poor compared to kit fins. I therefore elected to modify kit parts to –A fins.

Cutting Edge Cockpit set CEC32119 – only real problem was the fitting of the rear equipment bay.  If used as cast, it fits recessed relative to decking, rather than flush.

Eduard 32058 Placard set, 32105 Exhaust set, 32106 Exterior set, 32111 Mesh, 32510 Interior set.



At the time of my build, the Cutting Edge seamless intakes were not available.  My correction involved making front section intake replacements from fibreglass.  Having made the moulds, it will be a lot easier for future builds, and save myself money!

There has been a fair share of frustration and setbacks, but overcoming these has increased the level of satisfaction (I think!).  Thanks to Bob S of TWB for additional photo info which was invaluable.

John
