This
model is based on the Monogram 1/48 LM. I've replaced most of the kit parts and
figure there's only about 15% of the original kit remaining. I was initially
going to just cutaway part of the starboard side of the Ascent stage, but the
more I researched it, the more I decided to remove. My main reference was the CD
included in the book Virtual LM. I used the images on the CD as well as a wide
variety of engineering drawings from a variety of online sources.
Click on
images below to see larger images

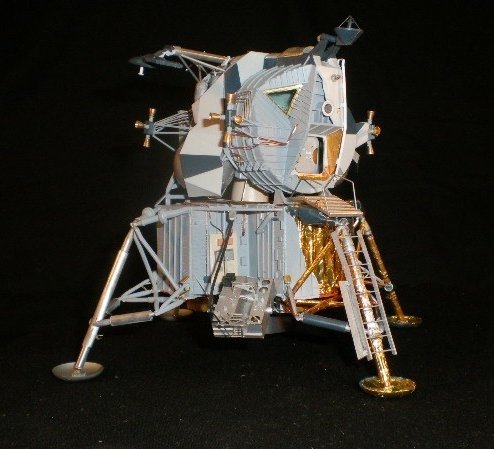

I
started by building the basic frame of the Ascent stage and scaling all
the various bits and pieces to replicate the fuel and oxidizer tanks,
wiring and equipment. Then I built the stringers on the front section
referring to lots of photos. For the windows I used Space Model Systems
windows and the New Ware (aftermarket) resin and photoetch goodies for EVA
handrails, thruster nozzles, docking tunnel and more. Aluminum printer
plate was used to replicate the cutaway portion of the Ascent Stage.

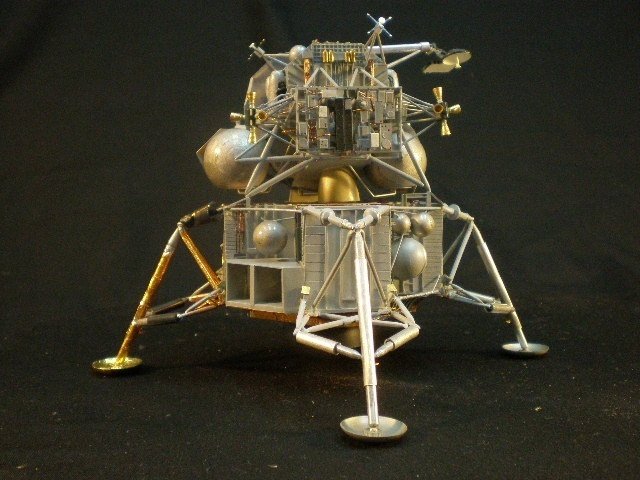

The
Descent stage started by cutting off the panels from the octagonal kit part. The
top of the Descent stage was modified to show the large Fuel tanks peeking thru
the top. The removed panels were then scratchbuilt, by scribing structural lines
and gluing strips of styrene to replicate the structural elements. The wiring is
copper wire. The landing pads are from New Ware and two of the landing struts
were built from aluminum tube. And, they operate. New Ware photoetch parts are
visible all over the landing gear. Chocolate bar wrappers were used to cover the
Descent stage.
Click on
images below to see larger images
I
was building another LM as Apollo 12 at the same time, so you can see a cutaway
version side by side.
Each
one of these models took about 150 hours. And I enjoyed every minute! It's a lot
of fun to build it as well as share pictures of it, here on ARC.
Thanx
Steve, for maintaining a superb website.
Pete
|
