1/32 Revell F-4E Cockpit   Part 2 of 4

by Pierre Greutert

--------------------



This article is about scratch-building an illuminated cockpit for the Revell kit F-4E (1/32). I divided the full article into 4 installments, so I could go into some details and describe them as closely as possible.

- Part 1: Building the front cockpit - design of the cockpit panels, adding lights.

- Part 2: Completing the front cockpit - the instrument panel and the HUD.

- Part 3: Building the rear cockpit - side console panels. Dry fit of the cockpit tub.

- Part 4: Completing the rear cockpit - the Instrument panel. Final details and adjustments.

ASSEMBLY OF THE FRONT INSTRUMENT PANEL

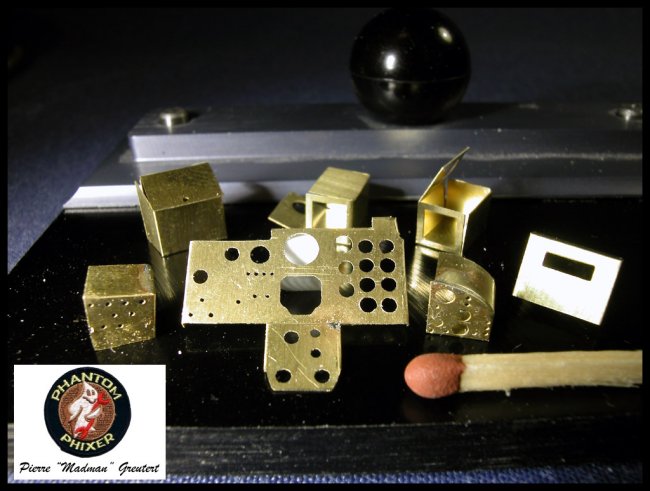

These are the various parts belonging to the front instrument panel assembly: the panel itself, two side panels, two MFD housings, etc The match served as a size reference for the tiny parts. Some of them are still “open”, others were soldered and polished.

Click on images below to see larger images

I painted the instrument panel with a layer of light grey acrylics. I backed-up the rear side with a 1mm thick piece of styrene sheet, through which I drilled the holes for the fiber optics (FO). Then I glued the FO’s to the styrene part, in the same way as for the side panels (2-component epoxy). A printed copy of the instrument dials was then “sandwiched” between the panel and the FO styrene sheet. I use the same back-light technique as for the side panels.

BUILDING THE MFD

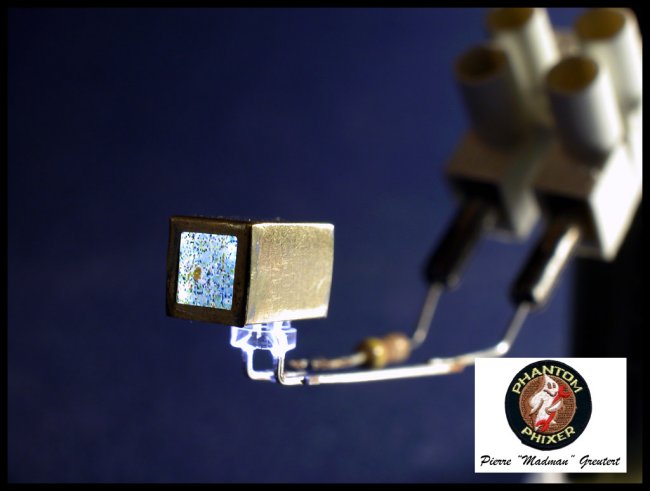

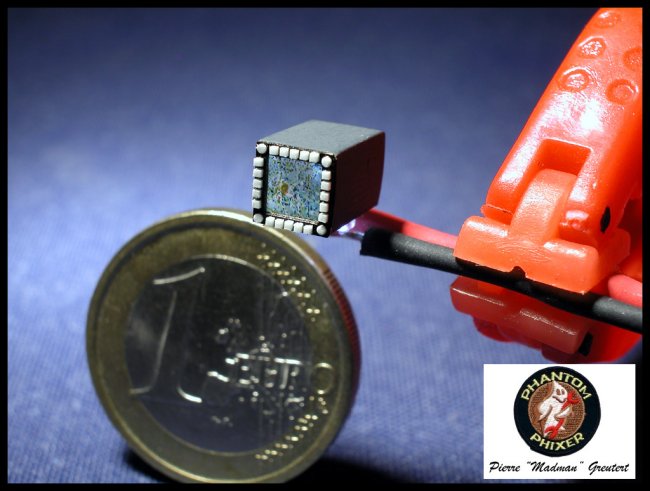

The MFD included an etched housing, a printed cardstock GPS map and a white LED. I stuck the LED into the housing from below, added a appropriate resistor, et voilà a beautiful lighted MFD Later on I would try different – higher value – resistors, to dim the light somewhat.

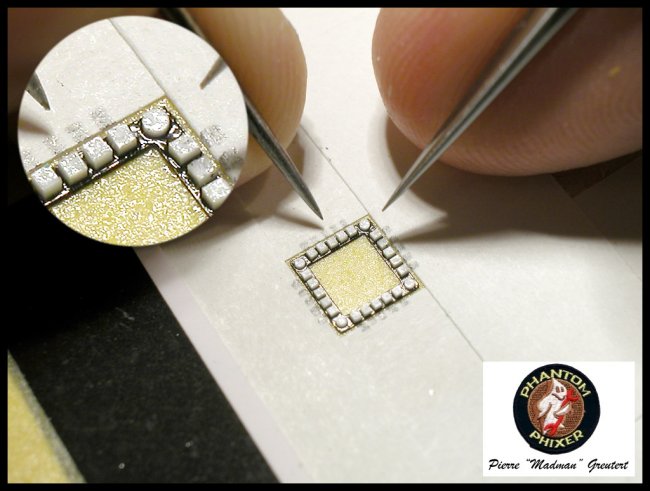

Building the MFD front frame with all its buttons was a nightmare. The buttons are the tiniest parts I ever assembled. I couldn’t have done it without the help of my 10x magnifying watch-maker lens and a precise layout template. I used Future to glue the buttons, which provided enough time to get everything aligned.

The result is just awesome: tiny, but fully illuminated!

Click on images below to see larger images

ASSEMBLING THE PARTS

The front instrument panel came from my custom etch, along with its sub-panels, instruments and MFD. I could have used Waldron modern jet instrument frames, but their size was slightly off scale for this build. So I stayed with my own scratch-built parts.

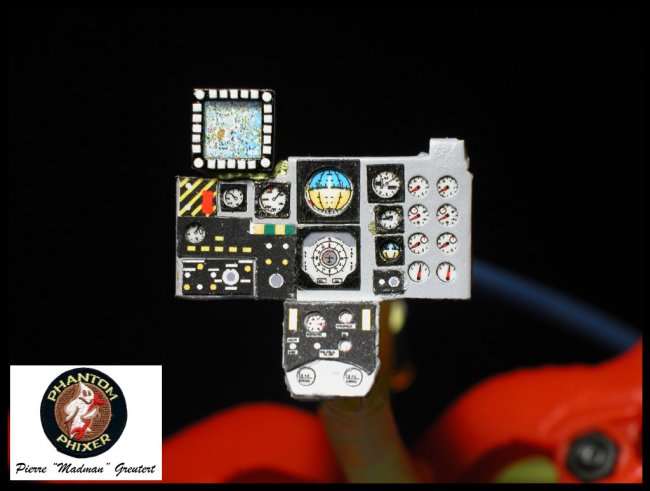

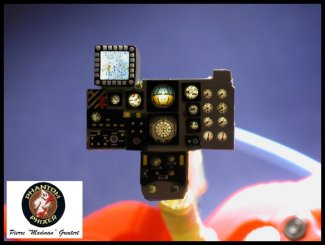

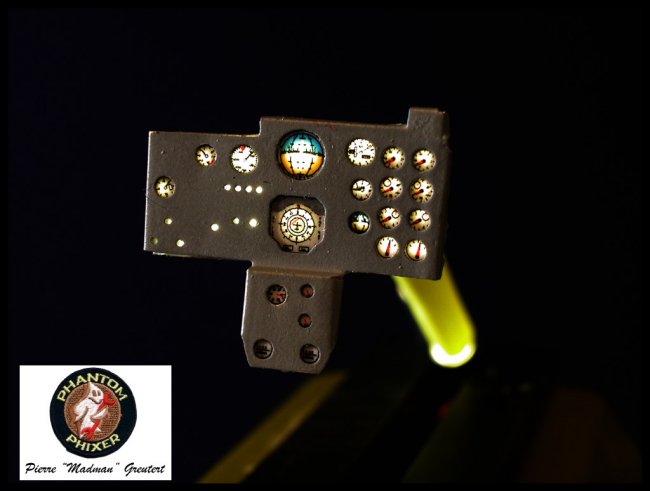

A night shot shows the beauty of the illuminated instruments. The gyrocompass light is too much centered; I will correct this in my next project. Nobody is perfect!

Click on images below to see larger images

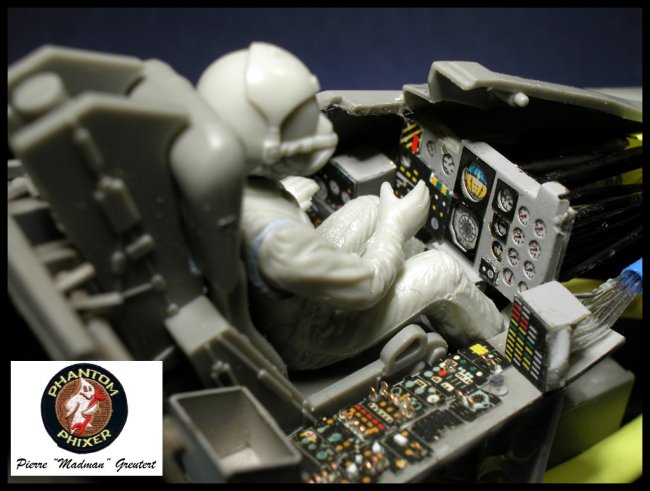

I dry-fitted the assembled front cockpit into the kit body. The seat is the kit part, which I would soon replace with a better resin copy. I had to cut out the panel shroud to accommodate the MFD. The Tamiya pilot was continuously raising his virtual pint of beer, happy to be there

Click on image below to see larger image

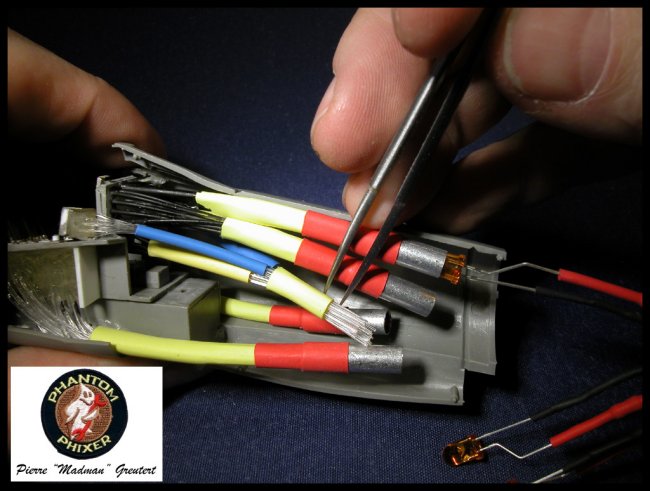

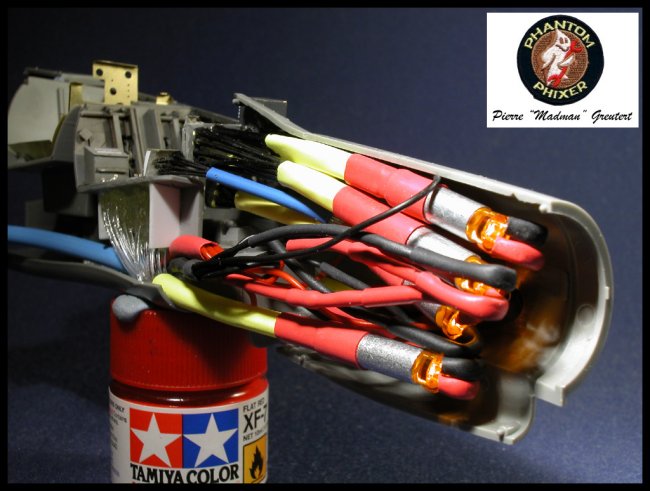

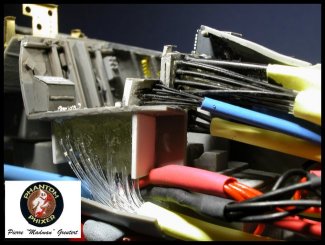

Connecting all the FOs to LEDs was the next challenge. I needed 5 LED’s to accommodate all the FO strands. First I bundled several stands into heat-shrink tubes, then bundled several of the latter into an aluminum socked. The other end received the LED. Note that I used special orange-colored LEDs, which provided a more natural light for the instruments than the regular white LEDs.

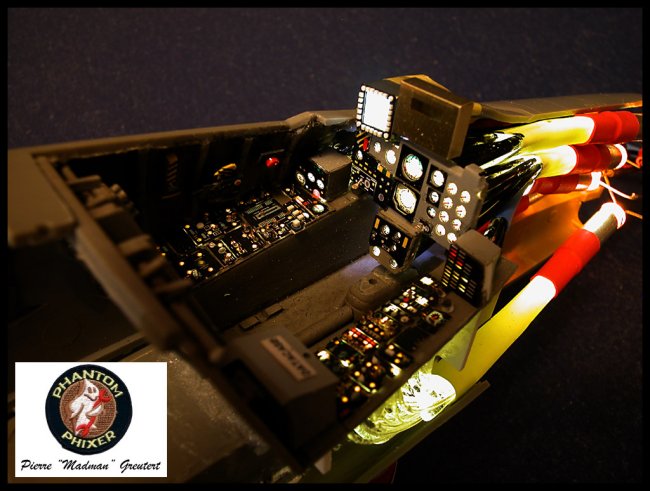

ALL LIGHTS ON The view was truly spectacular, even if some instruments looked over-exposed on this picture. Note that I painted the first protruding centimeters of FO all black, to prevent light leakage.

Click on images below to see larger images

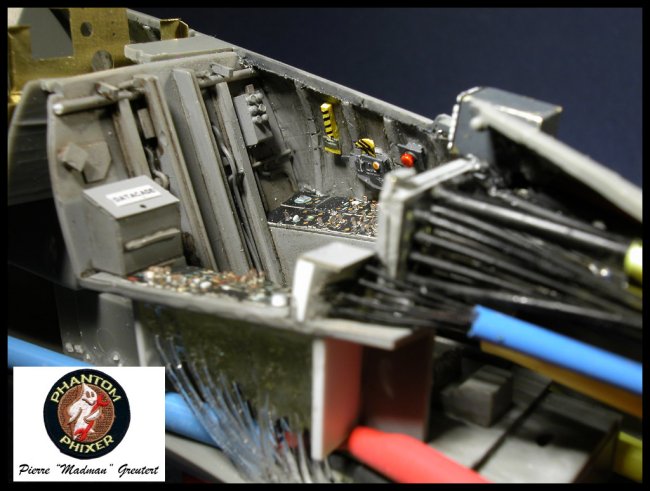

A close-up of the front section of the cockpit showed that the space became cramped. At least the model would not need extra weight being inserted into the nose. It will definitely not be a tail dragger…

Click on images below to see larger images

BUILDING THE HUD

A last step in the front cockpit building was to build and illuminate the board computer and the Head-Up Display (HUD).

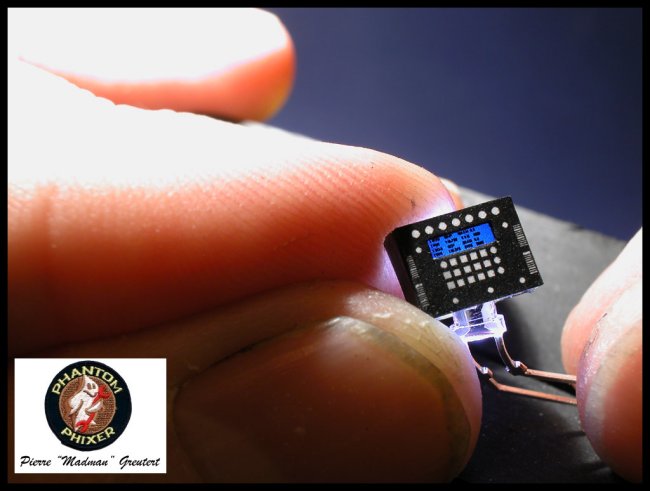

The computer box was made of an etched brass part, carefully folded, soldered and polished. I glued the cardstock front panel with Future and illuminated the display with a small 3mm LED.

Click on image below to see larger image

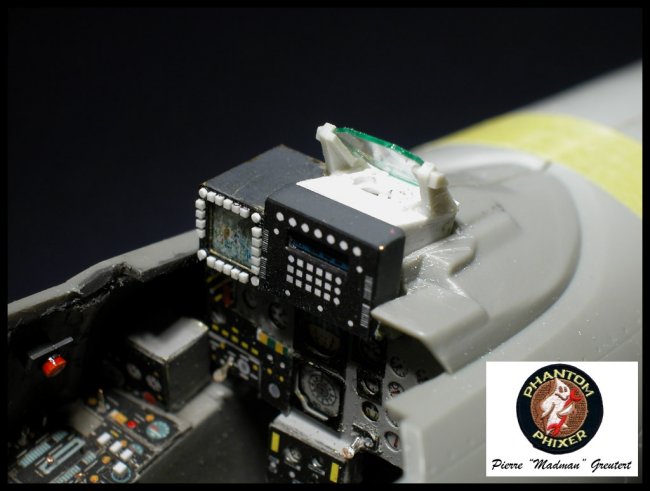

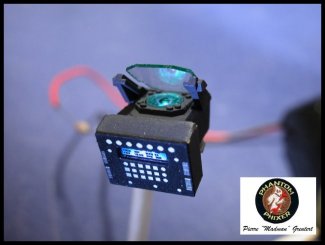

There wasn’t a lot of free space available to accommodate additional numbers of LEDs. So I came up with the idea to use a single LED to illuminate the computer and the HUD. I scratch built the HUD elements with styrene parts. The glass is punched out from a sheet of clear plastic, and painted Tamiya clear green. The HUD glass is also a piece of clear plastic, which I cut to the required shape. To simulate the “glass” effect, I painted the edges with clear green.

Again I had to practice surgery on the shroud to make an opening for the HUD. The result looked fine to me, especially with the “combo” lightning.

Click on images below to see larger images

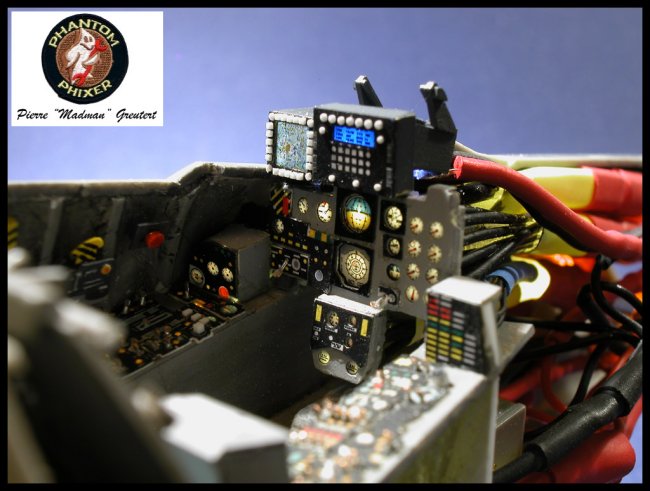

The front office approached completion. It was packed with a maximum of parts I could stuff into it – no wasted space!. The light provided a nice special touch of realism, underlined by all the wires and electric connections.

These steps in the construction of the scratch-built cockpit were completed at a much faster pace, between January and February 2005. The next article will tell the story of the rear cockpit, where I had to address a couple of extra challenges.

Pierre
