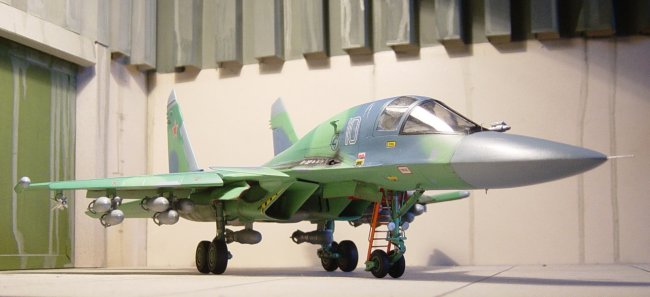

....here are some pictures of
my Su-34 in 1/48. I used a Su-33 as base for
my Su-34. In part 1 of this article
I described the modifications I did.....here is the result.
Click on
images below to see larger images

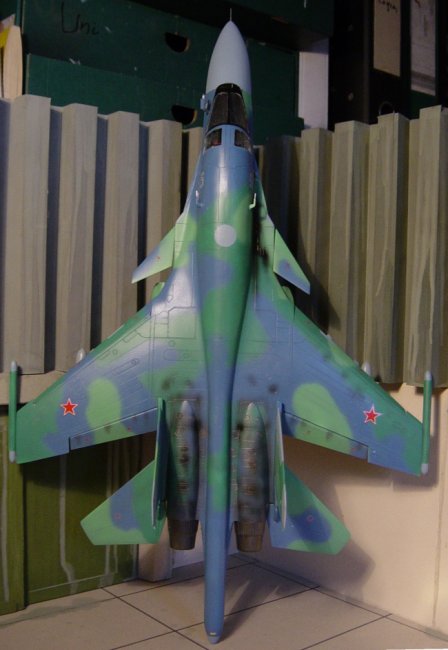

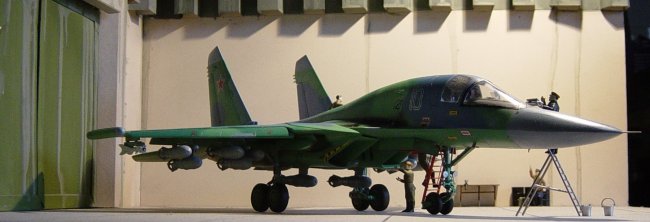

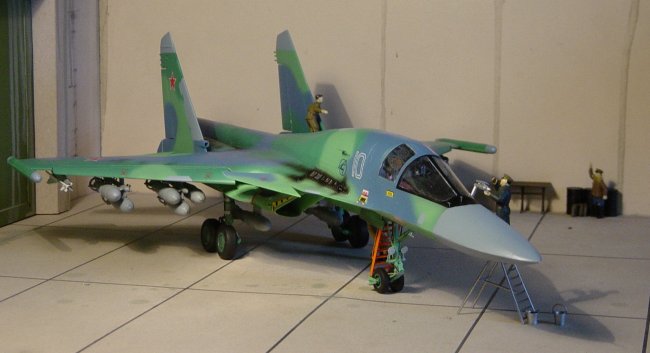

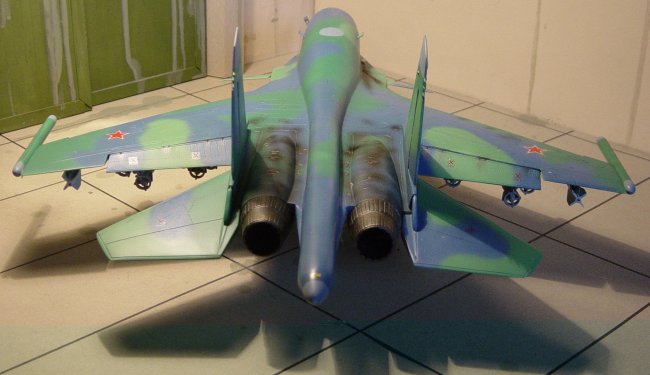

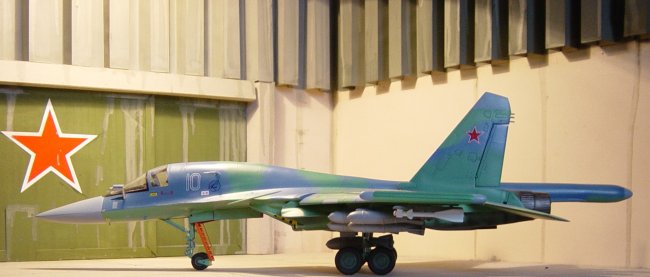

The camoflage was
inspired by one of the prototypes (the white 46). I did the painting freehand.
Click on
images below to see larger images

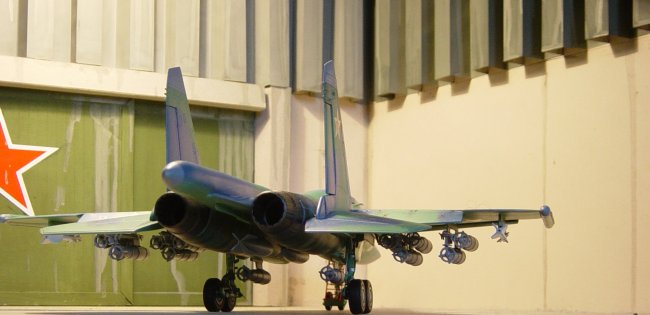

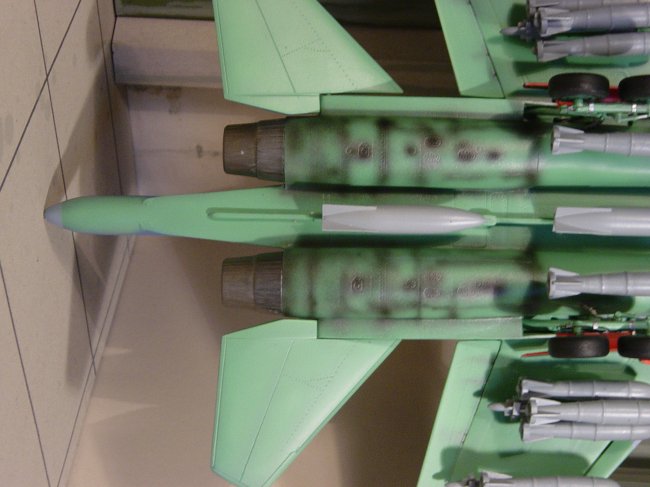

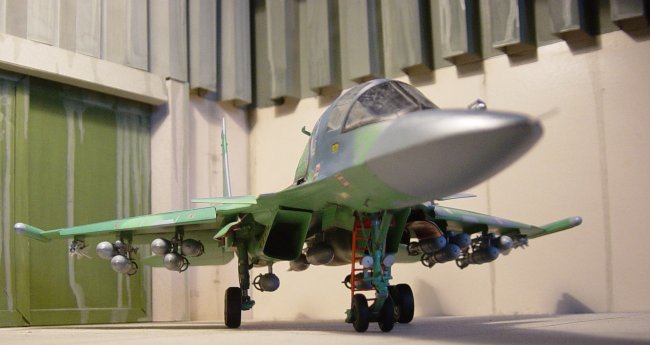

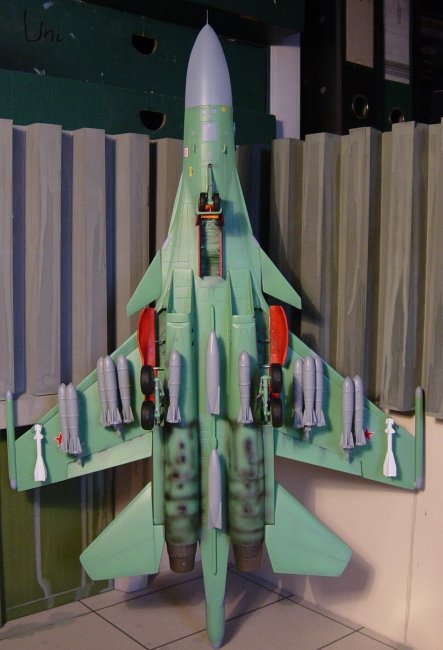

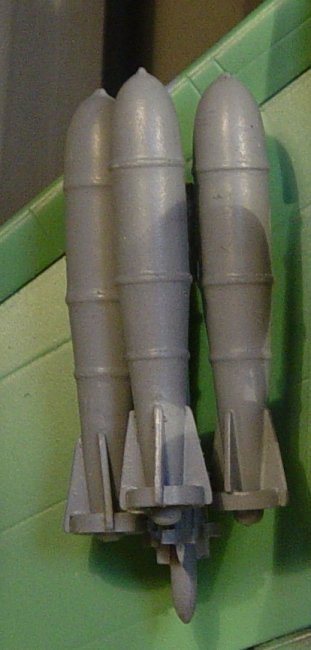

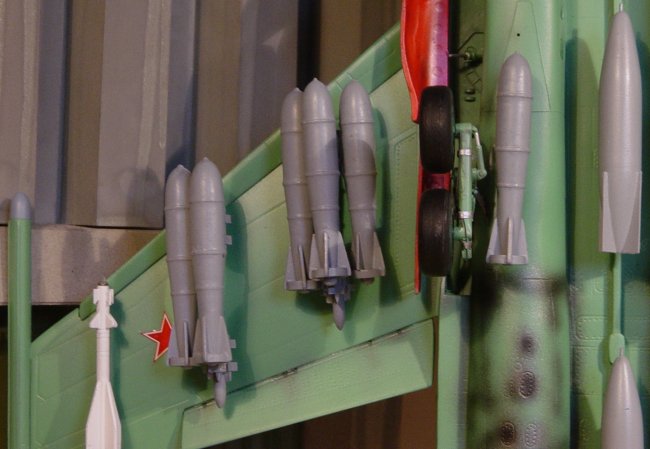

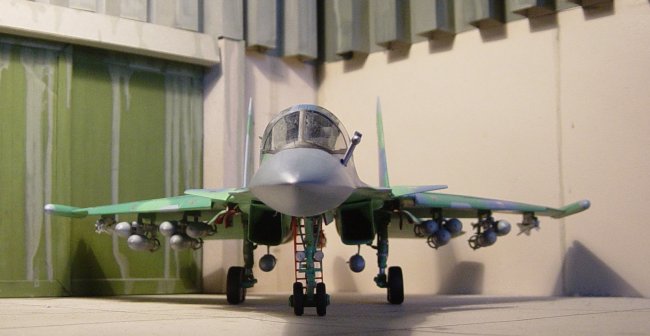

The
weapons are two ECM-pods
(1&12), two air-to-air missiles R-60(2&11), twelve 500 kg
(3,4,5,8,9&10) and two 1.000 kg (6&7) bombs. The ECM-pods I did by
myself, also the 1.000 kg bombs, the 500 kg bombs I took from 5
OZE Su-7 and one Su-25 kits, so were the R-60.
Click on
images below to see larger images

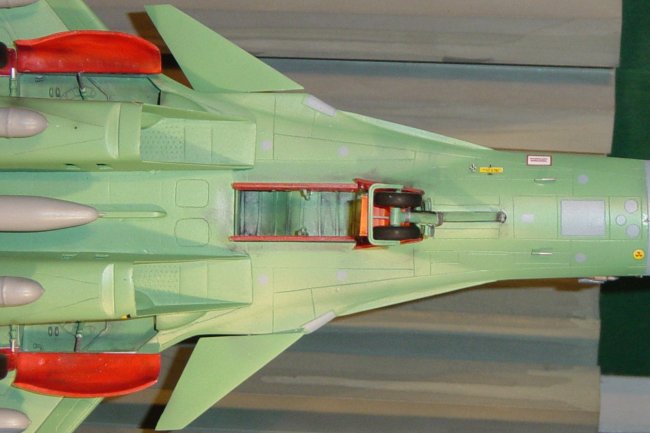

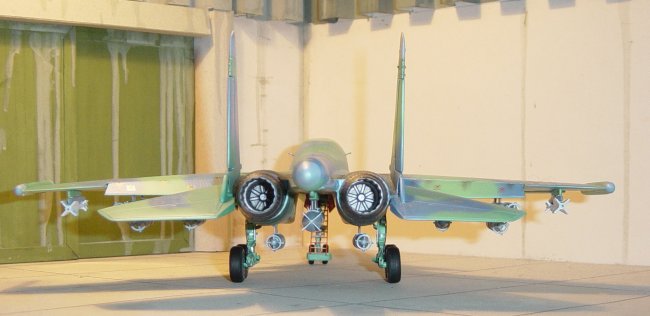

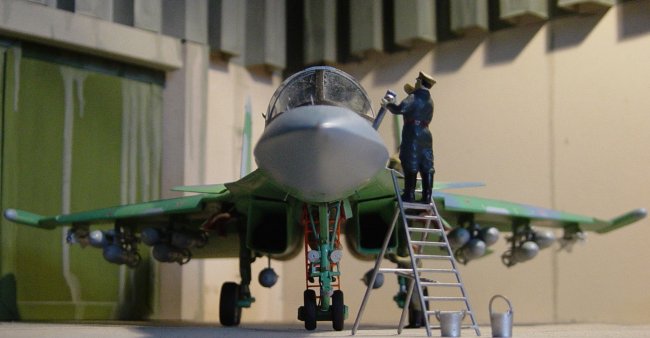

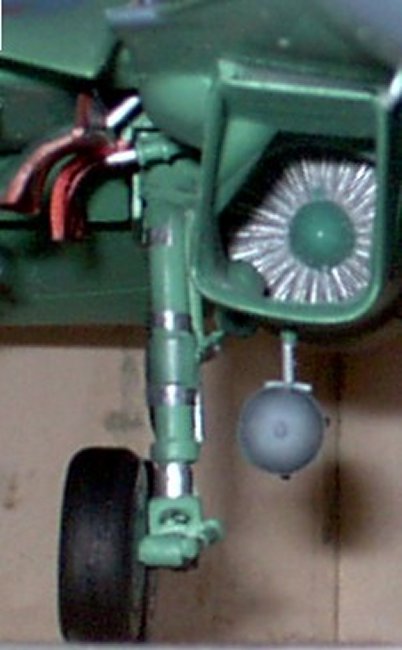

The front and maingear I did by myself, including the
gearbay doors. The two additional main gear wheels, I took from the Su-37 kit,
which I built some moths ago.
Click on
images below to see larger images

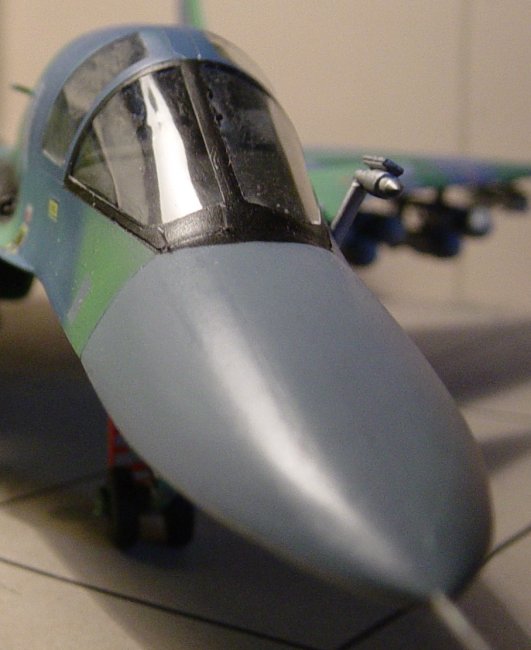

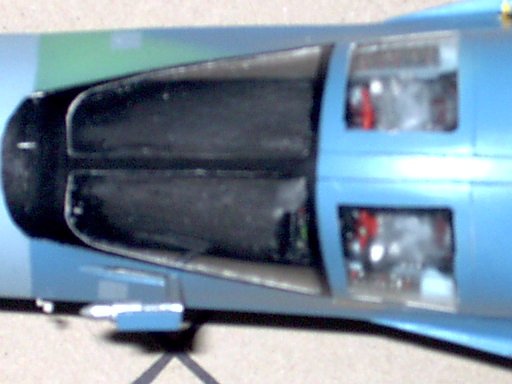

The cockpit I also did by
myself, only the K-36 seat and the sticks were taken from another

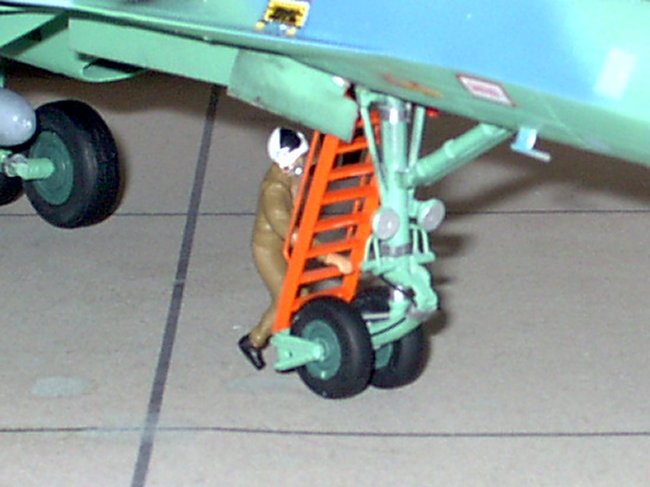

kits. The cockpit
ladder I did with 0,3mm plastic sheet.
Armin
