Walkaround #472

Avro Lancaster

Reference photos by Phillip Steele on July 1 2003

   Canada Day

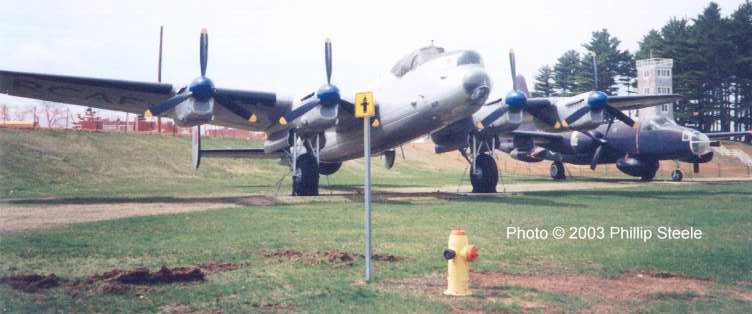

Front of aircraft





These photos were taken at 14 Wing Greenwood N.S. Air Museum on Mar 20 02 & May 17 03.

Hats off to all for keeping these display aircraft in such fine condition.

Phillip Steele

Click on images below to see larger images

Landing lights

Port wing tip. Note the fuel dump nozzles.

Rear fus' and fin.
Aft. Note the hatch.



Click on images below to see larger images

Aft

Upper starboard fin.
Lower part of fin.
Lettering and rondel, starboard side.



Click on images below to see larger images

I don't what these units are. They are simetricle.

Starboard side forward. Some "weatherizing" is currently under way.

Raydome
Nozzle. Unknown purpose.



Click on images below to see larger images

Different view of same.

This protrusion under the stab. can be seen in several of the pictures. Unkown purpose.
Prop.
Exhaust pipes.



Click on images below to see larger images

Inboard view of starboard wheel.

Port wheel well, forward.
Close up of Port well, forward.
Top of port well, outboard.



Click on images below to see larger images

Top of port well, inboard. Fuel bladder can be seen.

Port well, top view.

Port well, back.
Port well door, inboard.



Photos and text © by Phillip Steele
